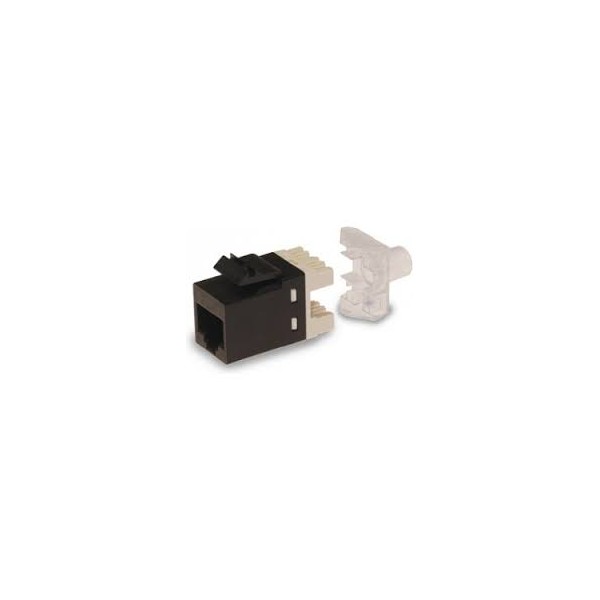

AMP Category 5E SL Series Modular Jacks

AMP Category 5E SL Series Modular Jacks


Modular jacks shall be unkeyed, [unshielded or shielded], 4-pair, RJ-45, and shall
fit in a .790″ X .582″ opening. Modular jacks shall terminate using 110-style pc
board connectors, color-coded for both T568A and T568B wiring. Each modular
jack shall be wired to [T568A or T568B]. The 110-style insulation displacement
connectors shall be capable of terminating 22-24 AWG solid or 24 – 26 AWG
stranded conductors. The insulation displacement contacts shall be paired, with
additional space between pairs, to improve crosstalk performance. Modular jacks
shall utilize a secondary PC board, separate from the signal path, for crosstalk
compensation. Each modular jack shall meet the [TIA/EIA-568-C.2, Enhanced
Category 5 or ISO/IEC 11801 Class D] performance standards and the requirements
listed in the following table.

SKU: 1375191-x Category:
