Patch Panel

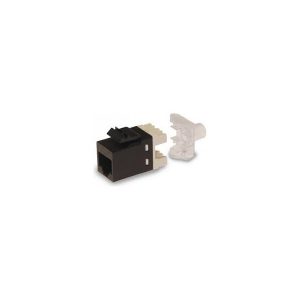

AMP Category 5E SL Series Modular Jacks
AMP Category 5E SL Series Modular JacksModular jacks shall be unkeyed, [unshielded or shielded], 4-pair, RJ-45, and shall
fit in a .790″ X .582″ opening. Modular jacks shall terminate using 110-style pc
board connectors, color-coded for both T568A and T568B wiring. Each modular
jack shall be wired to [T568A or T568B]. The 110-style insulation displacement
connectors shall be capable of terminating 22-24 AWG solid or 24 – 26 AWG
stranded conductors. The insulation displacement contacts shall be paired, with
additional space between pairs, to improve crosstalk performance. Modular jacks
shall utilize a secondary PC board, separate from the signal path, for crosstalk
compensation. Each modular jack shall meet the [TIA/EIA-568-C.2, Enhanced
Category 5 or ISO/IEC 11801 Class D] performance standards and the requirements
listed in the following table.
AMP Patch Panel 1RU 24 Port Category 6, UTP SL Series (Loaded)
AMP Patch Panel 1RU 24 Port Category 6, UTP SL Series (Loaded)TE’s Category 6 SL Series patch panels are available in 24-, 48- and 96-Port,
versions. Universal wiring labels permit field installation to either T568A or T568B
wiring, while simplifying ordering and inventorying. The “6-pack” modules accept
9mm and 12mm labels (included) as well as color-coded icons. Each “6-pack”
module comes unloaded with six individual Category 6 Jacks (shipped bagged),
enabling each port to be individually replaced if necessary. This design allows
for even and repeatable performance testing for each port by enabling installers
to make use of TE’s SL Series Termination Tool (P/N: 1725150-1) for even greater
performance standardization and repeatability

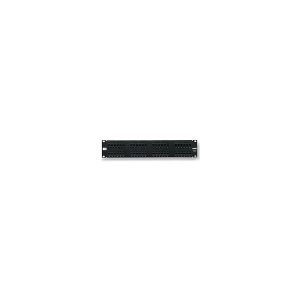

AMP Patch Panel 2RU 48 Port Category 5, UTP SL Series (Loaded)
AMP Patch Panel 2RU 48 Port Category 5, UTP SL Series (Loaded)TE’s Category 5e SL Series patch panels are available in 12-, 24-, 48- and 96-Port,
versions. Universal wiring labels permit field installation to either T568A or T568B
wiring, while simplifying ordering and inventorying. The “6-pack” modules accept
9mm and 12mm labels (included) as well as color-coded icons. Each “6-pack”
module comes unloaded with six individual Category 5e Jacks (shipped bagged),
enabling each port to be individually replaced if necessary. This design allows
for even and repeatable performance testing for each port by enabling installers
to make use of TE’s SL Series Termination Tool (P/N: 1725150-1) for even greater
performance standardization and repeatability
AMP Patch Panel 2RU 48 Port Category 6, UTP SL Series (Loaded)
AMP Patch Panel 2RU 48 Port Category 6, UTP SL Series (Loaded)TE’s Category 6 SL Series patch panels are available in 24-, 48- and 96-Port,
versions. Universal wiring labels permit field installation to either T568A or T568B
wiring, while simplifying ordering and inventorying. The “6-pack” modules accept
9mm and 12mm labels (included) as well as color-coded icons. Each “6-pack”
module comes unloaded with six individual Category 6 Jacks (shipped bagged),
enabling each port to be individually replaced if necessary. This design allows
for even and repeatable performance testing for each port by enabling installers
to make use of TE’s SL Series Termination Tool (P/N: 1725150-1) for even greater
performance standardization and repeatability
