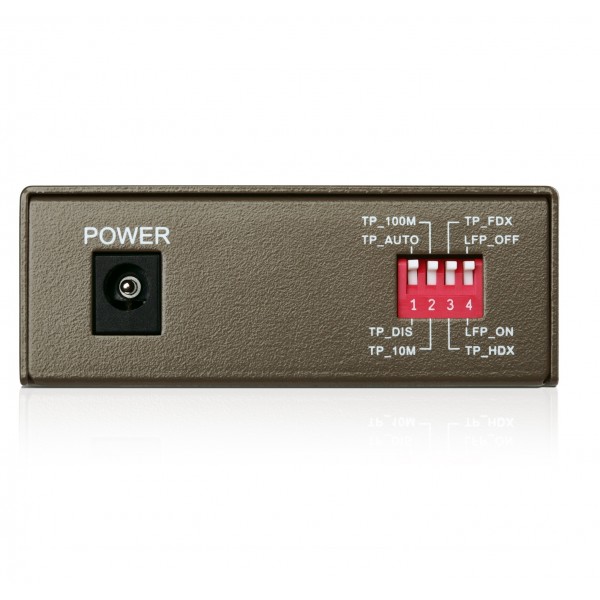

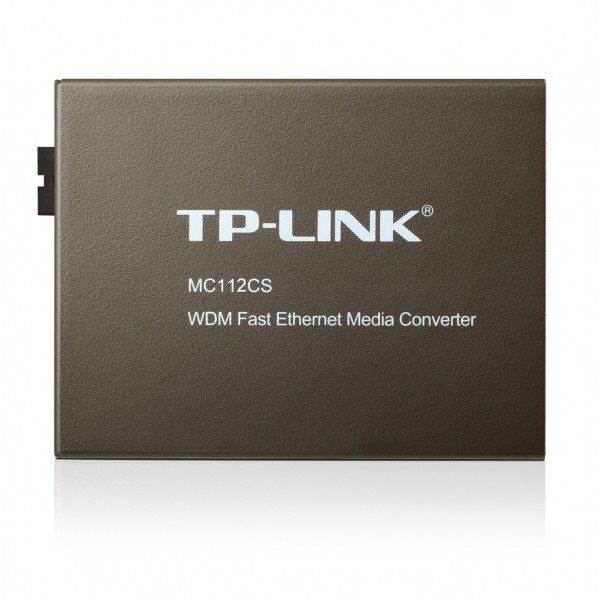

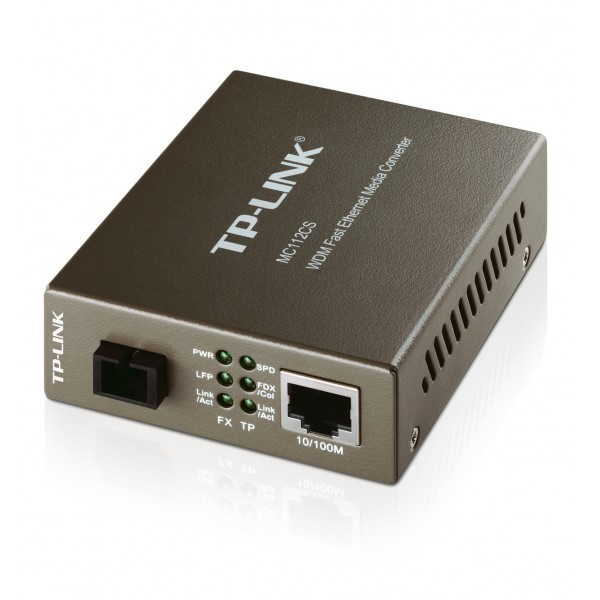

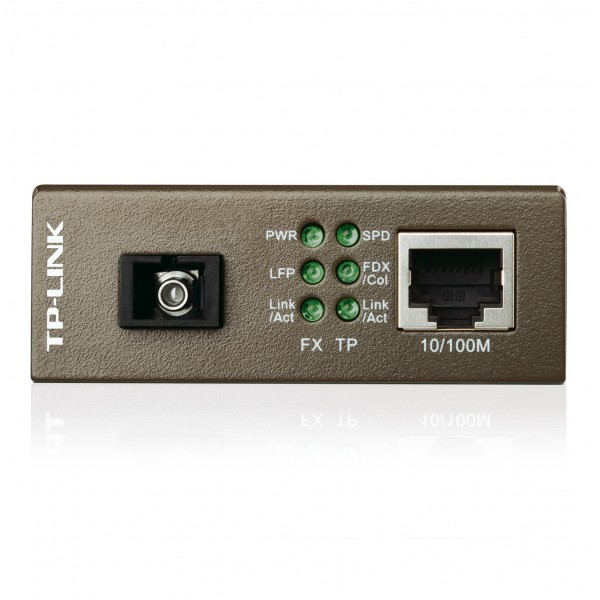

TPLINK WDM Fast Ethernet Media Converter MC112CS

TPLINK WDM Fast Ethernet Media Converter MC112CS

Rp397.500

Sesuai dengan standar 802.3u 10/100Base-TX, 100Base-FX, Fitur Link Fault Passthrough and Far End Fault meminimalkan terputusnya koneksi jaringan, Mengadopsi WDM teknologi, transmisi dan menerima data pada satu serat tunggal.

Compare
SKU: MC112CS Category:

Share this product

Description

MEDIA KONVERTER & MODUL

Standar dan Protokol

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Fungsi Dasar

Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Extends fiber distance up to 20km

Ports

1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)

Panjang Gelombang

1310nm Tx/1550nm Rx

WDM TX

1310nm

WDM RX

1550nm

Media Jaringan 100BASE-T

UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Media Jaringan 100BASE-T

UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Media Jaringan 100BASE-FX

Single-mode Fiber

Indikator LED

PWR, FDX/Col, Link/Act, SPD

Dimensi (WxDxH)

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Catu Daya

External Power Adapter

Max Power Consumption

2.41W

Keselamatan & Emisi

FCC, CE, RoHS

Lingkungan

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Brand

TP-Link
