Product Details

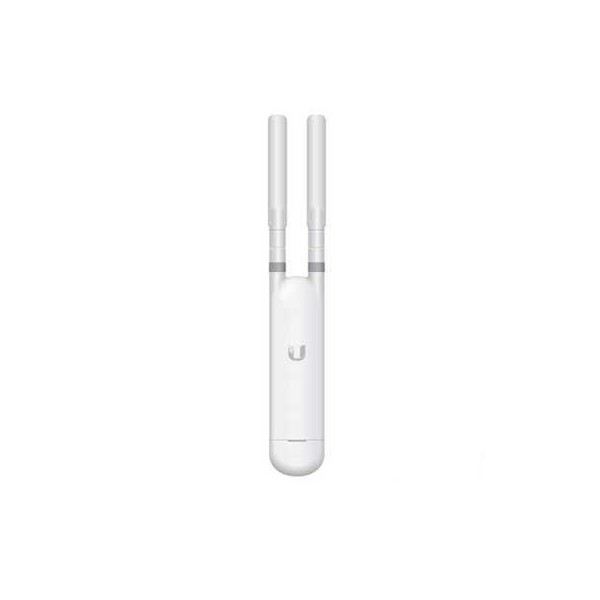

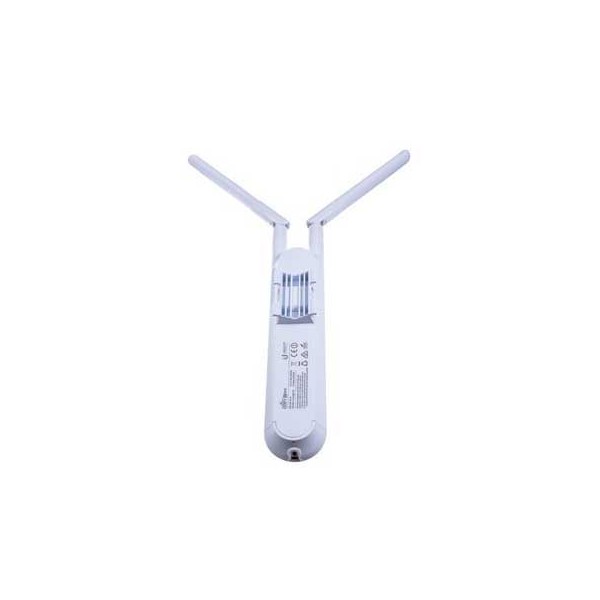

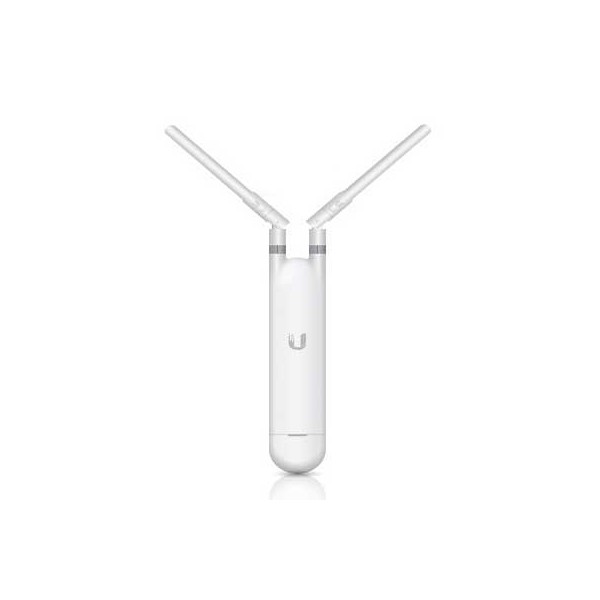

The UAP-AC-M provides simultaneous, dual-band, 2×2 MIMO technology and is available in single- and five‑packs1 . Compact Form Factor The UAP-AC-M discreetly integrates into any environment. Weather-Resistant Enclosure The UAP-AC-M can be used indoors or outdoors. Versatile Mounting The UAP-AC-M can be mounted on a wall, pole, or fast-mount of an optional Ubiquiti® high-gain antenna2 . (All accessories are included.) Multiple Power Options The UAP-AC-M is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with the included Gigabit PoE adapter1 or an 802.3af Alternative A compatible switch, such as the UniFi PoE Switch or EdgePoint™ EP-R6. Antenna Options Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna2 for expanded range coverage and customized pattern shaping.

SKU: UAP-AC-M Category:

Share this product


Dimensions 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35″)

Weight 152 g (5.36 oz) with Antennas

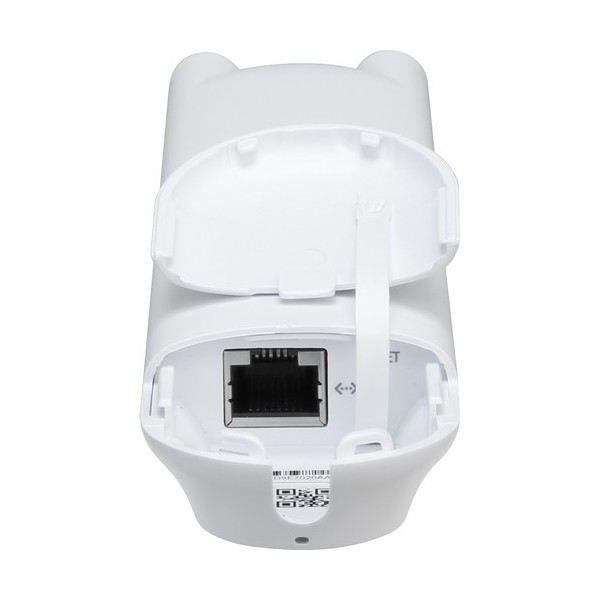

Networking Interface (1) 10/100/1000 Ethernet Port

Buttons Reset Power

Method 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af

Alternative A (Pairs 1, 2+; 3, 6 Return)

(Supported Voltage Range: 44 to 57VDC)

Power Supply 24V, 0.5A Gigabit PoE Adapter*

Power Save Supported Maximum Power Consumption 8.5W

Maximum TX Power 2.4 GHz 20 dBm, 5 GHz 20 dBm

Antennas 2.4 GHz 5 GHz (2) External Dual-Band Omni Antennas 3 dBi 4 dBi

Wi-Fi Standards 802.11 a/b/g/n/ac

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID Up to 8 per Radio

Mounting Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature -30 to 70° C (-22 to 158° F)

Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Traffic Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 250+
