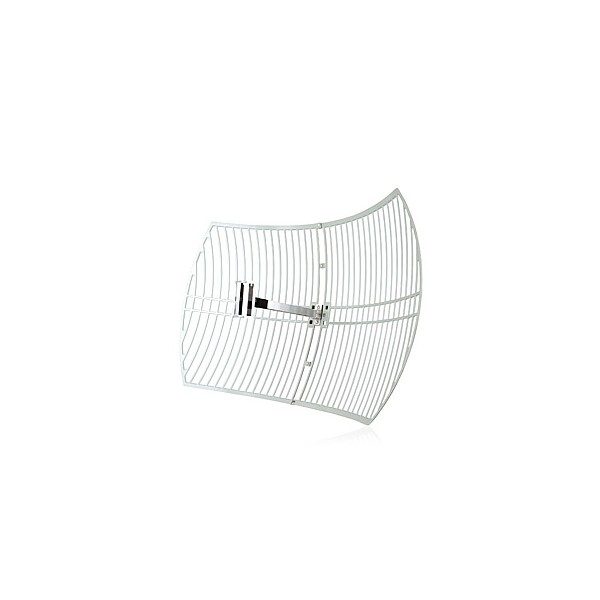

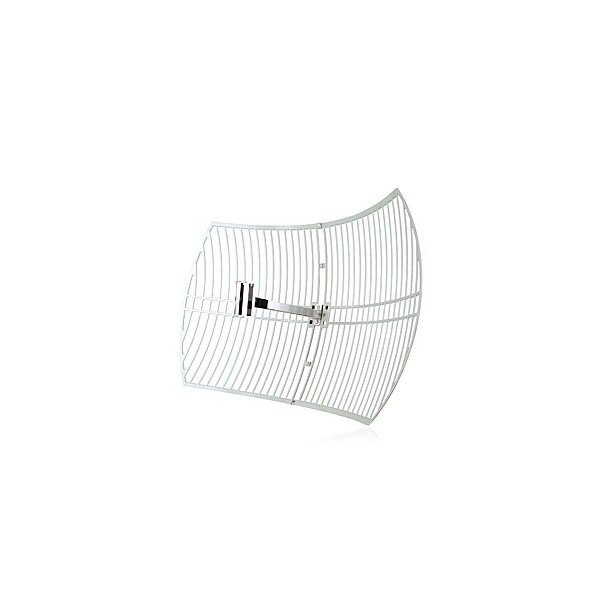

2.4GHz 24dBi Grid Parabolic Antenna

2.4GHz 24dBi Grid Parabolic Antenna

Rp662.500 Rp265.000

OWC Grid parabolic antenna is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band and provides 24dBi directional operation. The surface design with welded-steel reflector to bring out the best performance. This antenna features high gain, long coverage, light weight, compact structure and excellent wind-resistance. It is used for outdoor and the range is up to 56 km.

SKU: OWC2424 Category:

Share this product


Dimension 1000mm x 600mm
Weight 3.5kg
Frequency 2.4GHz
Gain 24dBi
VSWR(MAX.) 1.5:1
HPBW/H( °) 10
HPBW/V( °) 14
Polarization Linear; Vertical
Type Directional
Connector Type N Female(Jack)
Extended Cable/Length 30cm
Mounting Pole Mount
Application Outdoor
Approximate Range at 1/11/54Mbps 56km/31.5km/4.44km
Operating Temp. -40℃~60℃(-40℉~140℉)
Storage Temp. -40℃~60℃(-40℉~140℉)
Optional Accessory TL-ANT24EC6N TL-ANT24EC12N
Package Contents 24dBi Grid Parabolic Antenna
Installation mounting kits
User Guide
