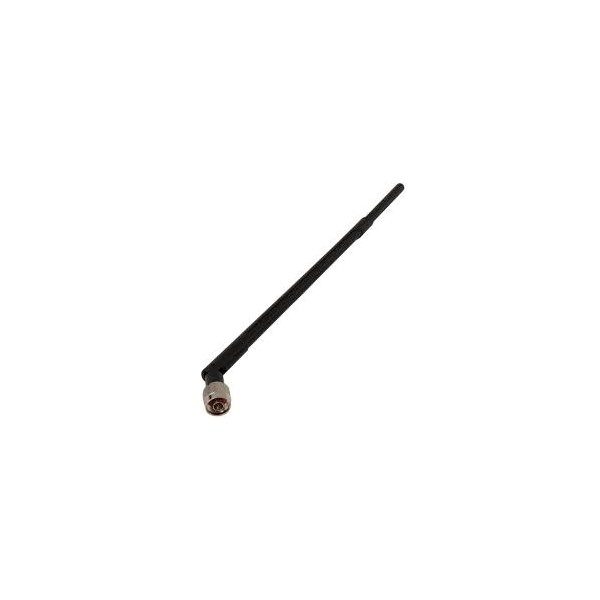

AIRLIVE 10dBi 2.4GHz Indoor Omni N-Male

AIRLIVE 10dBi 2.4GHz Indoor Omni N-Male


The WAI-101-NM Indoor omni antenna operates in the 2.4-2.5 GHz band and provides 10dBi omni-directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the N-Male connector guaranteeing wider compatibility with most of the wireless equipments.

SKU: WAI-101-NM Category:

Share this product


Frequency 2.412 ~ 2. 483GHz
Impedance 50 Ohms
Gain 10 dBi
Radiation Omni
VSWR(MAX.) < 2
HPBW/H( °) 360°
HPBW/V( °) 20°
Polarization Vertical, Linear
Mounting Fixed on metal surface
Application Indoor
Operating Temp.  -20°C – + 70°C
Storage Temp. -30°C – +85°C
Operating Humidity 95% maximum (non-condensing)
Storage Humidity 95% maximum (non-condensing)
