Product Details

UBIQUITI airGrid™ 5Ghz 27dBi

UBIQUITI airGrid™ 5Ghz 27dBi

Rp1.073.250 Rp993.750

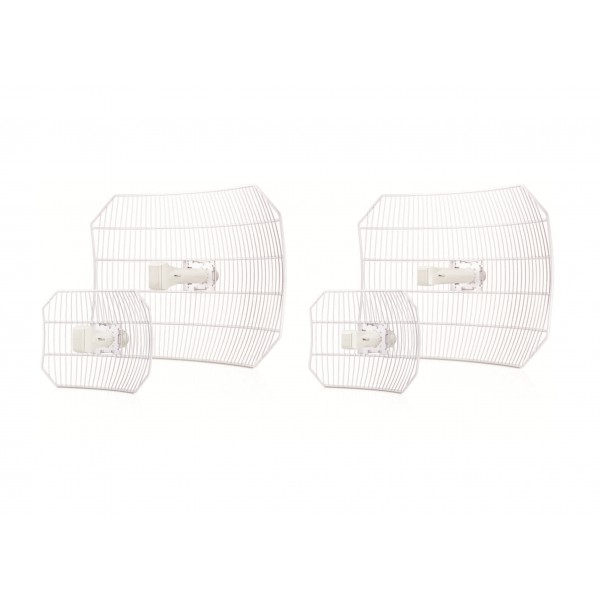

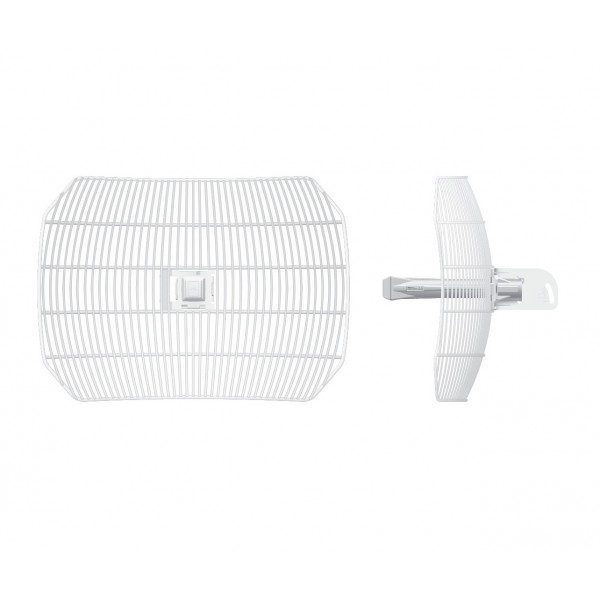

Utilizing InnerFeed™ technology, the new airGrid™M HP Series from Ubiquiti Networks™ represents the latest evolution of outdoor wireless broadband devices. The revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of the antenna. airGridM combines Ubiquiti’s InnerFeed and airMAX™ (TDMA protocol) technologies to create a simple, yet extremely powerful and robust wireless CPE (Customer Premises Equipment).

SKU: AG-HP-5G27 Categories: ,

Share this product


System Information

Processor Specs Atheros MIPS 24KC, 400 MHz
Memory Information 32 MB SDRAM, 8 MB Flash
Networking Interface (1) 10/100 Ethernet Port

Regulatory / Compliance Information

Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes

Physical / Electrical / Environmental

Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Kit Pole Mounting Kit (Included)
Max. Power Consumption 3 W
Power Supply 24V, 0.5A PoE Adapter (Included)
Power Method Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -30 to 75° C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2

AG-HP-5G27 Specifications

Dimensions 620 X 460 X 360 mm (Mount Included)
Weight 2585 g (Mount Included)
Wind Survivability 125 mph
Wind Loading 8 lbf @ 125 mph

Antenna / Radio Information

Operating Frequency Worldwide: 5170 – 5875 MHz

USA: 5725 – 5850 MHz

Output Power 25 dBm
Max. VSWR 1.5:1
Gain 27 dBi
